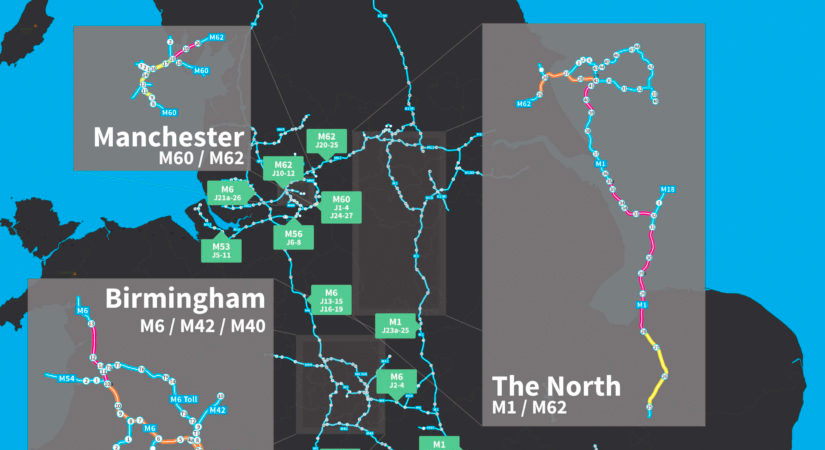

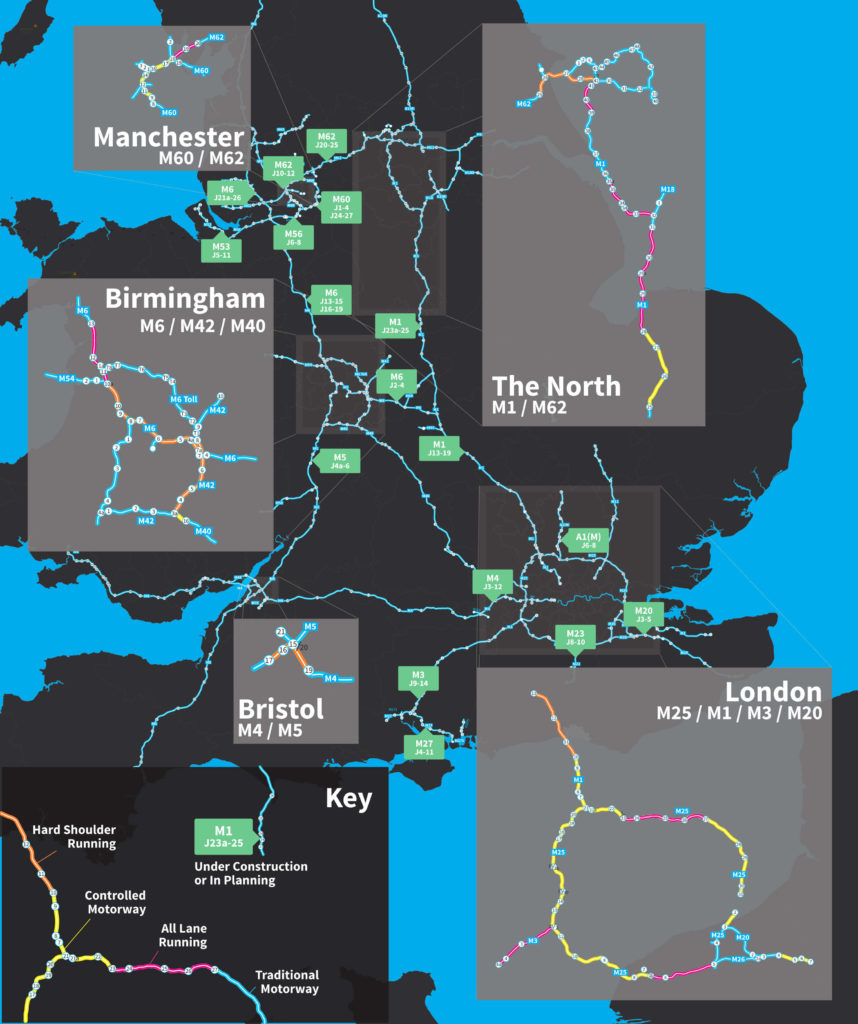

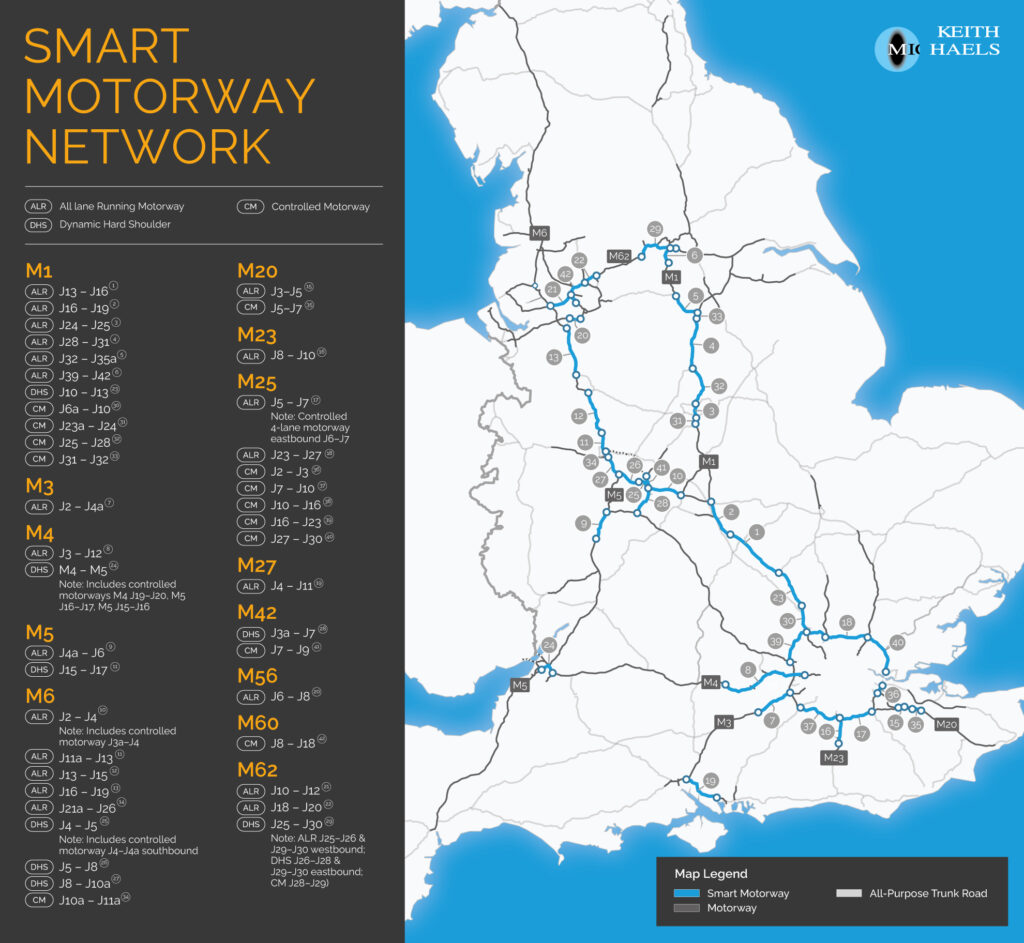

Smart Motorway Map Of The UK

As the number of smart motorways grow across the country, it’s important to know how to identify them and how to use them effectively. Therefore we’ve collected together all the important information you need to know – where you can find them, how to use them and what different types of smart motorways there are.

Smart Motorway Stats and Facts

• Smart motorway cameras catch around 1000 drivers speeding a week
• There are 236 miles+ worth of smart motorways in England
• 200 miles worth of smart motorways are currently planned or under construction
• Motorway traffic is predicted to increase by up to 60% from 2010 by 2040
• £1.5 billion has been invested into new smart motorways

Smart motorways make use of real time traffic management techniques to reduce congestion and help traffic move more freely, with techniques including variable speed limits and ‘all lane running’ schemes.

Regional traffic control centres monitor traffic closely to consistently update and amend speed limits and signs on smart motorways, informing users of any upcoming congestion or hazards. This method of reducing congestion means that there is no need for motorways to be widened with extra lanes added.

Smart motorway traffic management was developed by Highways England (previously Highways Agency) to reduce costs, improve journey times and minimise our impact on the environment.

Speed Limits

Stick to the speed limits indicated, these have been displayed to prevent stop-start traffic from occurring and you could land yourself a fine if you ignore them. If no signs are displayed the national speed limit will apply.

Hard Shoulders

Hard shoulders are identifiable by a solid white line separating them from other motorway lanes. On some smart motorways you can use these if there is a speed limit above the lane; if there is no sign or a red cross in the lane this means you should treat it as a regular hard shoulder, leaving it free and not using it unless there is an emergency.

What are Hadecs 3 cameras?

The HADECS 3 speed cameras are being used on smart motorways throughout the country. Smaller and less recognisable than usual speed cameras, they are painted grey, are small and don’t rely on film to capture those speeding. They take three snapshots when triggered that are sent to enforcement staff.

Red Xs

A red X signals that a lane is closed and you must not drive in it. This could be due to a broken down vehicle, a person, an animal or debris in the road. It can also indicate that a hard shoulder is currently closed, so avoid a penalty by obeying the red cross.

What happens if I break down or have an accident?

With all lane running and hard shoulder running motorways you will notice intermittent refuge areas for use in emergencies. If your vehicle is unfortunate enough to experience a breakdown or get into an accident you should first switch on your hazard lights then make your way to the nearest emergency refuge area. The furthest these are separated by is 1.5 miles and are identifiable by blue signs with orange SOS telephone symbols.

If this is not possible, try to get to the nearest verge if it is safe to do so and exit via the left hand door, waiting behind the safety barriers. If you cannot get to the inside lane, stay inside your vehicle with your seatbelt on and if you are in a dangerous situation unable to leave your car safely phone 999. The traffic control centre will then be able to use their smart roadside technology to manoeuvre traffic around you safely.

Smart Motorways in London

All lanes running
M3 J2-4a
M25 J5-6/7
M25 J23-27

Controlled
M1 J6a-10
M26 J16-23
M25 J10-16
M25 J18-10
M25 J7-8
M20 J4-7
M25 J2-3
M25 J27-30

Hard Shoulder running
M1 J10-13

Smart Motorways in the North

All lanes running

M1 J28-31
M1 J32-35a
M1 J39-42

Controlled

M1 J25-28

Hard Shoulder Running

M62 J25-30

Smart Motorways in Bristol

Hard shoulder running
M4 J19-20
M5 J15-17

Smart Motorways in Manchester

All Lanes Running
M62 J18-20

Controlled
M60 J8-18

Smart Motorways in Birmingham

All Lanes Running
M6 J10a-13

Controlled
M42 J3a-M40 J16

Hard shoulder running
M6 J8-10a
M6 J5-8
M42 J3a-7 (pilot)
M42 J7-9
M6 J4-5
